A site plan drawn without soil testing is a guess. It might work out. More often, the geotechnical report comes back with results that force changes, sometimes small ones and sometimes changes that affect the entire project layout. In Grand Rapids, where glacial soils vary widely across short distances, soil testing early in the design process separates projects that stay on budget from ones that hit expensive surprises during construction.
How Soil Bearing Capacity Influences Foundation Design
Bearing capacity is how much load the soil can support without failing or settling too much.
Every foundation transfers building loads to the ground. If the soil can’t handle those loads, the foundation sinks, shifts or cracks. The structural engineer sizes the foundation based on the bearing capacity number the geotechnical report provides. Change that number and the foundation design changes with it.
A site with strong bearing capacity, typically above 2,000 pounds per square foot, can support a conventional spread footing. Weak soils require different solutions:
- Deep pilings driven to a stable layer below
- Helical piers screwed into competent soil
- A mat foundation that spreads the load over a wider area
- Soil improvement work before construction starts
Each option costs more than a standard footing. The cost difference between a spread footing and a deep pile foundation on a commercial building can run into hundreds of thousands of dollars. That’s not a number anyone wants to see after the site plan is finalized and the budget is set.
What Weak Bearing Capacity Looks Like in Kent County
West Michigan’s glacial history left behind a mix of soil types. Sand and gravel near river valleys tend to drain well and carry load effectively. Clay-heavy soils in lower-lying areas near the Grand River hold water and compress under load over time. Organic soils, common in former wetland areas, have almost no bearing capacity and must be removed or bypassed entirely.

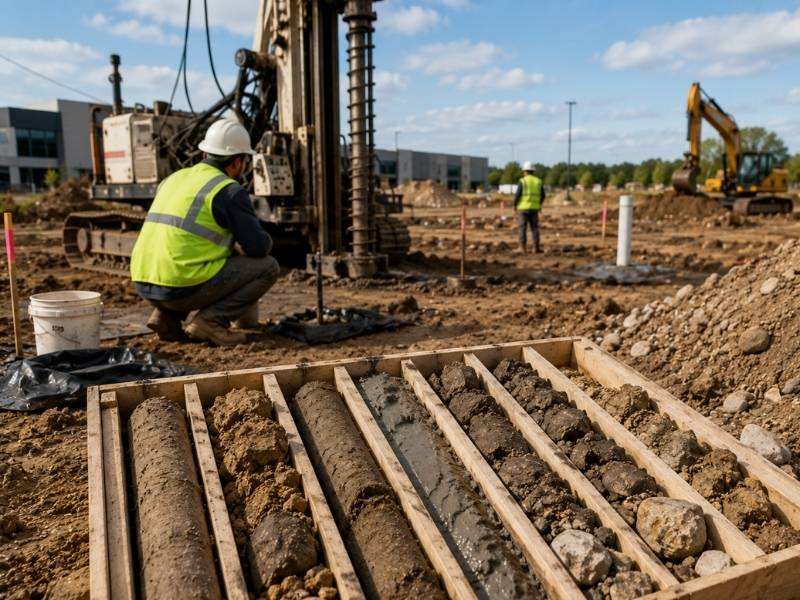

A soil boring drilled to 30 or 40 feet gives the geotechnical engineer the data needed to map what’s under the site before design decisions get locked in.
When Poor Soil Conditions Require Site Plan Revisions
Poor soil doesn’t always kill a project. It often means a different project layout.
A building footprint positioned over a soft soil zone may need to shift to a better area of the site. A parking structure planned for one corner may get relocated when borings reveal organic material at depth in that location. These changes ripple into setbacks, access points, grading and utility routing.
The earlier these changes happen, the cheaper they are. A site plan revision during schematic design takes days. The same revision after civil engineering is complete and permits are submitted takes weeks and costs more in redesign fees and schedule delays.
Poor soil conditions that commonly trigger site plan revisions include:
- Organic or peat layers requiring removal and replacement
- Expansive clay soils that shift with moisture changes
- Loose sand below the water table
- Fill material from prior site use that was never properly compacted
In Grand Rapids, brownfield and infill sites along the urban core often contain historic fill of unknown composition. Soil testing on these sites sometimes uncovers debris, rubble or contaminated material that changes not just the foundation design but the regulatory path for the entire project.
How Groundwater Levels Affect Development Decisions
Groundwater is the variable that catches developers off guard most often.
A site that looks dry in August may have a seasonal high groundwater level that reaches within four feet of the surface every spring. That elevation matters for basement walls, underground utilities and detention systems.
The geotechnical report includes groundwater observations from the time of boring. A responsible geotechnical engineer also notes whether those readings reflect seasonal conditions or a dry period. Kent County’s frost depth is 42 inches, and spring thaw regularly raises groundwater levels across much of the region.
High groundwater affects development in several ways:
- Basements may need waterproofing systems or may be cut from the design entirely
- Underground stormwater detention vaults may not work at the planned depth
- Utility trenches may require dewatering during construction
- Pavement over saturated subgrade fails faster and needs a heavier design section
Some of these issues change the site plan directly. A developer who planned an underground parking level may eliminate it when groundwater data shows it would require permanent dewatering. That changes the building footprint, the parking count and possibly the project’s zoning compliance.
Balancing Earthwork Costs With Soil Test Findings
Earthwork is where soil test results often have the most direct budget impact.
A site that needs two feet of weak soil removed and replaced across the entire building pad adds real cost. The calculation is straightforward: excavation volume times disposal cost, plus import fill volume times material and placement cost. On a large commercial site, that number can exceed the original earthwork budget significantly.
Cut and fill balance is part of every grading plan. Soil test results affect that balance when native material isn’t suitable for reuse as structural fill. Clay soils above a certain plasticity index can’t go under pavements or foundations without treatment. Organic material can’t be reused at all.
A geotechnical engineer advises on which native soils are reusable and under what conditions. That input goes directly into the earthwork estimate. Getting it before bid means the contractor prices the real scope. Getting it after the bid means changing orders.
Some sites in the Grand Rapids area have shallow bedrock. Bedrock at six feet below grade looks manageable until grading plans require cuts to eight feet. Rock excavation costs three to five times more than soil excavation. A bore that hits rock early tells the civil engineer to adjust grades before the project goes to bid.
Why Early Soil Testing Helps Prevent Costly Redesigns
The sequence matters. Soil testing should happen before site design, not during it or after it.
A developer who orders borings before schematic design has real data when the civil engineer starts laying out the site. Building locations, grading strategies and foundation assumptions all get made with actual conditions in mind.
A developer who skips early testing and orders boring sessions after the site plan is complete faces a harder situation. If results are bad, the site plan may need major revision. That revision may require a new permit submission. In Michigan, resubmissions go back through review queues that can add weeks to the schedule.
Order the borings first. Design around what they show.
Frequently Asked Questions
What does soil testing include for a commercial site?
A standard geotechnical investigation typically includes soil borings, laboratory testing of soil samples, and a geotechnical report with foundation recommendations, soil bearing capacity, groundwater observations, and site preparation guidance.
How many soil borings does a commercial site need?
The number of soil borings depends on the size, complexity, and soil conditions of the site. Many commercial developments require at least three to five borings, while larger or more variable sites often require additional testing. The geotechnical engineer determines the appropriate boring locations and quantity.
What is soil bearing capacity and why does it matter?
Soil bearing capacity is the amount of weight the ground can safely support without excessive settlement or failure. It plays a critical role in foundation design, helping engineers determine the most appropriate foundation system for the project.
Can soil problems stop a project entirely?
In most cases, no. Many soil conditions can be addressed through engineering solutions such as soil stabilization, foundation modifications, or ground improvement techniques. However, contaminated soils or significant environmental concerns may require remediation before construction can proceed.
When should soil testing happen in the development process?
Soil testing should be completed before site design begins. Early geotechnical information allows engineers to design around actual site conditions, helping reduce the risk of costly redesigns, construction delays, and unexpected foundation issues later in the project.
