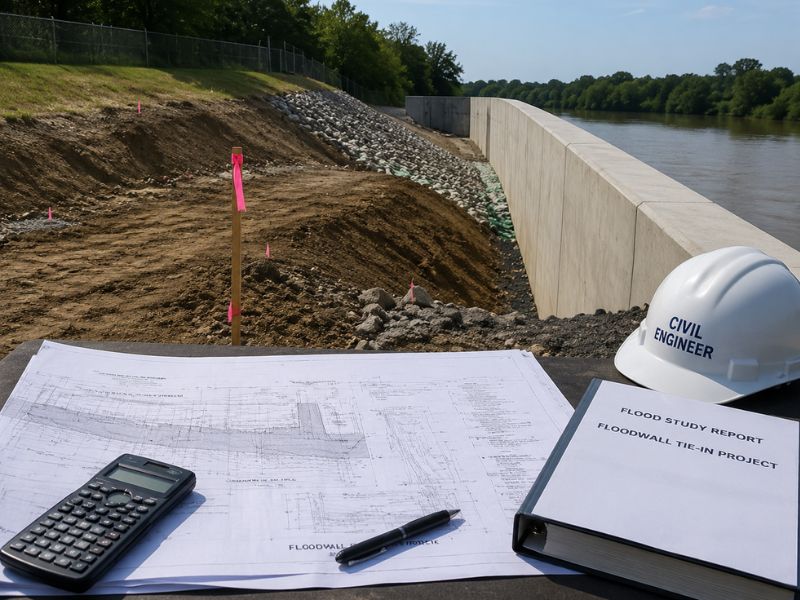

A floodwall is only as strong as its weakest connection point. That’s why a flood study review matters so much for tie-in projects. Engineers don’t just check if the wall can hold back water. They check the spot where the wall meets high ground, another structure, or an old flood feature. That spot has to close the gap completely. If it doesn’t, the rest of the wall barely matters. This piece walks through what a good review looks at, from the flood model on paper to the ground right at the tie-in.
Confirming the Effective Flood Model and Project Tie-In Limits
Every review starts with the paperwork that already exists. Engineers pull the approved flood model, the flood profiles, the mapping data, the vertical datum, and the model shape already on file for the area. None of this is optional. A wall built on the wrong datum can look fine on paper. It can still fail to match real conditions on the ground.
The tricky part is the analysis limits. If the new plans don’t line up cleanly with the current flood study, the model has to stretch farther upstream or downstream. It has to keep stretching until the two studies match up. FEMA guidance requires this. Revised models must extend until the tie-in actually works. Skip this step, and nobody can say for sure how the new project affects the flood data everyone else relies on.
Modeling How the Floodwall Connection Changes Water-Surface Elevations
Once the baseline is set, engineers compare old conditions to new ones. Does the floodwall tie-in push water somewhere else? Does it slow the flow down? Does it speed velocities up? Does it raise flood levels somewhere nearby? A wall that fixes flooding in one spot can quietly cause new flooding just downstream. Nobody wants that surprise after construction is done.
Cross sections carry a lot of weight in this step. So do ineffective-flow areas, obstruction settings, and any grading planned near the connection. Each piece gets built into the model. That way the comparison shows what will really happen once the wall is built, not just what the site looks like today. Small changes here can shift the results more than people expect.
Reviewing the Transition Between the Floodwall and High Ground
The spot where a floodwall ends and meets high ground needs its own close look. This transition is often where problems hide. The wall itself might be sound while the ground around it is not.
Reviewers check the tie-in elevation first. It has to sit above the design flood level, not just close to it. Alignment matters too. A wall that curves away from the high ground at the wrong angle can leave water a path around its end. The land nearby gets checked for low points, dips, or old drainage paths. Floodwater can use any of these to slip past the wall entirely. A wall can be built well and still fail here if nobody studied the ground next to it just as closely.
Evaluating Seepage, Overtopping, and Flanking Risks at the Tie-In
Water doesn’t only beat a floodwall by going over the top. It can move underneath it, around it, or through the connection long before the flood level gets that high. Reviewers check the hydraulic loading on the wall. They check the seepage-control features built into the design. They look for erosion near the transition too.
Freeboard gets checked as well. Even a strong wall needs extra height above the design flood level. That extra room covers waves, debris, or small errors in the model. There’s also the landward side to think about. Water doesn’t always attack from the flood side alone. It can back up through a storm drain, a low spot, or groundwater on the protected side. That water can enter the exact area the wall was supposed to keep dry. USACE guidance treats seepage, leakage control, hydraulic loading, and wall stability as core design issues. A real review holds the tie-in to that same standard.
Documenting Floodplain Compliance and Required Model Revisions
The last part of the review answers a simple question. What happens next on paper? Depending on the results, a project might support a no-rise finding. It might need local floodplain approval. It might even trigger a full FEMA map-revision process. Which path applies depends on what the earlier modeling showed.
Either way, the paperwork matters a lot. Reviewers usually need certified topographic data, the hydraulic model files, comparison tables showing old versus new conditions, updated flood profiles, structure information, and a clear written explanation of what changed and why. Miss any one of these, and approval can stall even when the design itself is solid. A full, complete package is the difference between a smooth review and months of back and forth with reviewing agencies.
Frequently Asked Questions
What is a floodwall tie-in?
A floodwall tie-in is the spot where a floodwall connects to another flood-protection feature. This might be an existing structure, an embankment, or high enough natural ground. It’s the seam between the built wall and whatever already holds back water on either side.
Why must a flood study evaluate areas beyond the floodwall connection?
Because the effects of a new wall don’t stop right at its edges. The study has to look past the construction limits. It needs to confirm the new model reconnects properly with the current flood model. It also has to rule out any surprise changes upstream or downstream.
Can a floodwall tie-in increase flood elevations?
Yes, and this catches people off guard more than it should. A connection that blocks or redirects flood flow can change water levels, speed, and how the flow spreads across the floodplain. That’s exactly why old and new conditions get compared side by side instead of assumed to match.
Does every floodwall project require a FEMA map revision?
No. It comes down to the project’s location, what the model shows, local floodplain rules, and whether the project changes anything on the current flood map or study. Many smaller tie-ins pass review without ever triggering a formal map change.
What information is needed for a floodwall tie-in review?
Expect to gather the current hydraulic model, fresh topographic survey data, the proposed wall and grading plans, tie-in elevations, cross sections, flood profiles, and clear documentation of how water levels change between old and new conditions.
